Sample 2

The single data file contains various data errors and a calculated data field (Jobber Price). The template includes conditional validation and a filter by effective date.

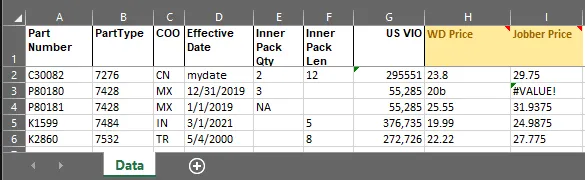

Source Data

T2_Data.xlsx

main

One row per part number.

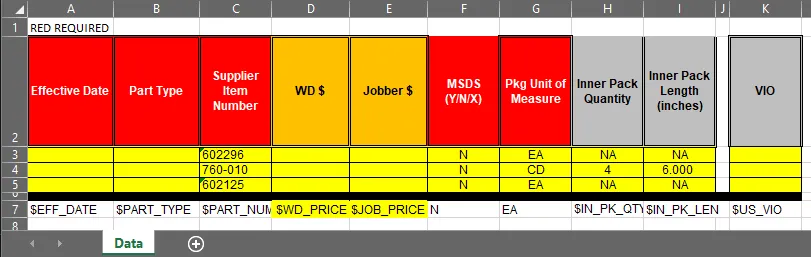

Template File

T2_Template.xlsx

template

Customer-supplied headings with variables added for processing (on row 7).

Config File

T2.yaml

Description: Sample 2 Loadsheet

Template:
  FileName: "T2_Template.xlsx"
  WorkSheet: "Data"
  DataRow: 7
  Variables:
    - {Name: $PART_NUMBER, Type: "string", Required: true}
    - {Name: $PART_TYPE,   Type: "string", Required: true}
    - {Name: $WD_PRICE,    Type: "float4!", Required: true}
    - {Name: $JOB_PRICE,   Type: "float4!", Required: false}
    - {Name: $IN_PK_QTY,   Type: "number", RequiredIf: "$IN_PK_LEN != nil"}
    - {Name: $IN_PK_LEN,   Type: "number", RequiredIf: "$IN_PK_QTY != nil && $IN_PK_QTY > 1"}
    - {Name: $EFF_DATE,    Type: "date",   Required: true,
        Filter: "$EFF_DATE != nil && $EFF_DATE < Date(p1)"}
    - {Name: $US_VIO,      Type: "number", Required: false}

Sources:
  - Name: Primary
    Description: Main Parts file
    FileName: "T2_Data.xlsx"
    WorkSheet: "Data"
    HeaderRow: 1
    Columns:
      - { Heading: "Part Number",    Format: "part",   TemplateVariable: $PART_NUMBER }
      - { Heading: "PartType",       Format: "text",   TemplateVariable: $PART_TYPE }
      - { Heading: "Inner Pack Qty", Format: "text",   TemplateVariable: $IN_PK_QTY }
      - { Heading: "Inner Pack Len", Format: "text",   TemplateVariable: $IN_PK_LEN }
      - { Heading: "Effective Date", Format: "date",   TemplateVariable: $EFF_DATE }
      - { Heading: "US VIO",         Format: "number", TemplateVariable: $US_VIO }
      - { Heading: "WD Price",       Format: "price",  TemplateVariable: $WD_PRICE }
      - { Heading: "Jobber Price",   Format: "price",  TemplateVariable: $JOB_PRICE }

There are several things to note about this configuration file:

  1. The Template section defines the template file, worksheet, and variables used in the loadsheet.

  2. The Sources section defines the data sources used to populate the template variables.

  3. Each variable can have additional properties, such as Required, RequiredIf, and Filter, which control its behavior during validation and processing.

  4. The Filter property on $EFF_DATE ensures that only rows with an effective date before a specified date are included in the output. (p1 is a placeholder for the date provided as a parameter when the loadsheet is run.)

  5. The RequiredIf and Filter definitions protect against nil values, ensuring that the expressions only perform comparisons with actual provided data.

  6. The source does not include all columns in the source file (ignoring the COO column).

  7. The order of the Source Headings do not need to match the order of the columns in the source file, but they do need to match the heading values in the source file exactly.

  8. The resulting template file will include native Excel floats for the two pricing columns, displayed with 4 decimal places. This is because “float4!” is specified as the type for those variables. The ”!” indicates that the value is a native Excel number (as opposed to a text representation of the number).

Run Command

loadsheets --config t2.yaml -highlight -params "p1=2020-10-01"

loadsheets (v1.2.0) - populate Excel template with new part data from multiple source files
Copyright (c) Winsby Group LLC. All rights reserved.
Licensed to: DRiV
reading "T2_Data.xlsx:Data"...
writing "C:\samples\sample2\T2_Template_2025-07-22.xlsx"...
Rows Output: 3
Warnings: 6, Elapsed time: 6ms

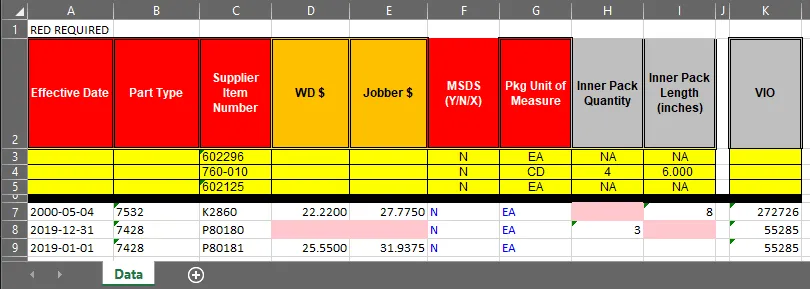

Results

results

There 4 errors in the resulting spreadsheet (highlighted in red). Let’s look at the log…

Log File

loadsheets (v1.2.0)
Executable:     C:\bin\loadsheets.exe
Launched From:  C:\samples\sample2
Base Directory: C:\samples\sample2
Log File:       C:\samples\sample2\T2_Template.log
Config File:    t2.yaml
Template File:  T2_Template.xlsx
Source Files: 1
  Primary: C:\samples\sample2\T2_Data.xlsx
Run Parameters: [p1=2020-10-01]
Highlighting Errors: yes
Filters: [[$EFF_DATE: $EFF_DATE != nil && $EFF_DATE < Date(p1)]]
error: "C30082" (row 7) value error for $EFF_DATE: "mydate" is not a valid date (yyyy-mm-dd, m/d/yyyy or Excel "Date" format) [T2_Data.xlsx:Data:D2]
error: "K2860" (row 7) (col 8 [H]) missing required value for $IN_PK_QTY (condition "$IN_PK_LEN != nil") [T2_Data.xlsx:Data:E6]
error: "P80180" (row 8) value error for $WD_PRICE: "20b" is not a valid decimal number [T2_Data.xlsx:Data:H3]
error: "P80180" (row 8) value error for $JOB_PRICE: "#VALUE!" is not a valid decimal number [T2_Data.xlsx:Data:I3]
error: "P80180" (row 8) (col 4 [D]) missing required value for $WD_PRICE [T2_Data.xlsx:Data:H3]
error: "P80180" (row 8) (col 9 [I]) missing required value for $IN_PK_LEN (condition "$IN_PK_QTY != nil && $IN_PK_QTY > 1") [T2_Data.xlsx:Data:F3]
Parts Excluded: 2
C30082
K1599
Output file: C:\samples\sample2\T2_Template_2025-07-22.xlsx
Rows Output: 3
2025-07-22 16:40:46: Process completed.
Warnings: 6, Elapsed time: 6ms

There are several things to note about the log file:

  1. The Run Parameters section shows the parameters passed to the loadsheet (used in the effective date filter).

  2. The Filters section shows the filters applied to the data, including the effective date filter.

  3. The errors are (1) a bad date format, (2) a missing inner quantity, (3) a bad decimal format, and (4) a missing required value.

  4. The Parts Excluded section shows which parts were excluded from the output due to errors or filters.

  5. The output file name includes the current date, which is useful for versioning the output. (This could have been customized in the config file, but we left it as the default.)

❗Note: you should always check the log file for errors and warnings, even if the output file looks correct. Also, you should probably not use the -highlight option for the final deliverable unless you want the customer to understand that you recognize there is a problem in those cells.
